Slot Type 304 Stainless Steel Rods 2m2 Pressure Screen Drum For OCC Pulp

オンラインです

Slot Type 304 Stainless Steel Rods 2m2 Pressure Screen Drum For OCC Pulp

Slot Type 304 Stainless Steel Rods 2m2 Pressure Screen Drum For OCC Pulp
Slot Type 304 Stainless Steel Rods 2m2 Pressure Screen Drum For OCC Pulp Slot Type 304 Stainless Steel Rods 2m2 Pressure Screen Drum For OCC Pulp Slot Type 304 Stainless Steel Rods 2m2 Pressure Screen Drum For OCC Pulp Slot Type 304 Stainless Steel Rods 2m2 Pressure Screen Drum For OCC Pulp Slot Type 304 Stainless Steel Rods 2m2 Pressure Screen Drum For OCC Pulp Slot Type 304 Stainless Steel Rods 2m2 Pressure Screen Drum For OCC Pulp

大画像 :  Slot Type 304 Stainless Steel Rods 2m2 Pressure Screen Drum For OCC Pulp

商品の詳細:

Place of Origin: CHINA
ブランド名: YUXING
証明: CHINA LIGHT INDUSTRY STANDARD
Model Number: CUSTOMIZED

お支払配送条件:

Minimum Order Quantity: 1set
Packaging Details: STANDARD EXPORT PACKAGE
Delivery Time: 20 WORK DAYS
Payment Terms: T/T, Western Union, MoneyGram
詳細製品概要
Screen area: 2m2 Material: 304 stainless steel
Basket type: Slot type Slot size: 0.2mm
Computerized: No Condition: New
Warranty: 1 Year Type: Pulping Equipment,pressure screen,paper machinery parts,screening equipment
After-sales service provided: Engineers available to service machinery overseas
ハイライト:

304 Stainless Steel Screen Drum

,

2m2 Pressure Screen Drum

,

Slot Type Sieve Drum

304 Stainless Steel Rods 2m2 Pressure Screen Drum For OCC Pulp



PRESSURE SCREEN IN THE PULP MAKING PROCESS
Model PZSL-1 PZSL-2 PZSL3 PZSL-4 PZSL-5 PZSL-6
Hole size Ø1.1-5mm
Slot size 0.15-1mm
Screen area 0.3 0.5 0.6 1.2 2.0 3.0
Screen basket size Ø406*258mm Ø600*267 Ø600*355 Ø602*634 Ø756*831 Ø1067*1044
Inlet pulp consistency 0.2-6 %
Pulp inlet diameter Ø150 Ø200 Ø200 Ø250 Ø300 Ø400
Pulp outlet diameter Ø150 Ø200 Ø200 Ø250 Ø300 Ø400
Top dump discharging pipe diameter Ø80 Ø80 Ø80 Ø100 Ø100 Ø125
Capacity 10-15 20-30 25-40 40-60 80-100 120-150
Power 18.5-22/4 30-37/4 37-45/4 55-75/4 90-110/4 110-132/4

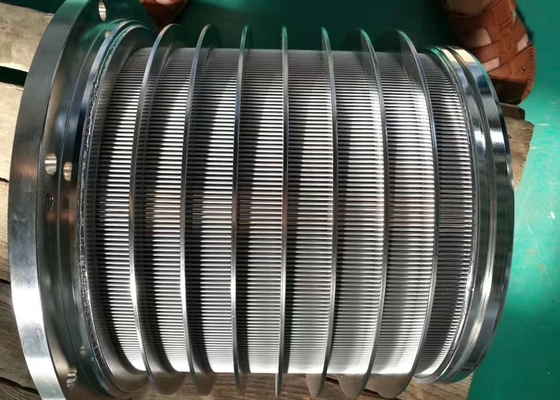

The sieve drum is made of stainless steel. There are two types of sieve plate: hole type and slot type, each with different specifications of sieve holes and sieve sizes. Users can choose according to the raw materials and use conditions. The sieve plate adopts drilling (milling seam) and electrolytic polishing processes to meet the requirements of smooth, smooth and non-slurrying.



1. The rod sieve sieve plate is a new generation of plate-type seam sieve plate. The entire plate surface is almost the effective filtering area. It reduces the bearing capacity of the board, which greatly increases the daily production capacity and greatly extends the service life of the screen.

2. The rod sieve sieve plate has high strength, high fatigue strength, and uniform sieve width.

3. The surface of the rod sieve is electrochemically polished without burrs or cotton.

4. The thickness of the wear-resistant layer on the whole surface of the sieve plate reaches 0.2mm, and the surface hardness can reach HV900-1100.



Slot Type 304 Stainless Steel Rods 2m2 Pressure Screen Drum For OCC Pulp 0

Slot Type 304 Stainless Steel Rods 2m2 Pressure Screen Drum For OCC Pulp 1Slot Type 304 Stainless Steel Rods 2m2 Pressure Screen Drum For OCC Pulp 2

Slot Type 304 Stainless Steel Rods 2m2 Pressure Screen Drum For OCC Pulp 3Slot Type 304 Stainless Steel Rods 2m2 Pressure Screen Drum For OCC Pulp 4
